PCI DSS Pregunta 70 — Protección del servidor central de Syslog

Campo	Valor
Solicitante	José David Álvarez — QSA ControlCase
Pregunta	"Proporcionar evidencia en el servidor central Syslog: descripción de controles que protegen contra cambios no autorizados (a) alteraciones en tipos de mensajes, (b) edición/eliminación de archivos de log, (c) fallos en el registro o sobrescritura; lista de usuarios con permiso limitado + justificación; evidencia de logs archivados protegidos por FIM + lista de archivos monitoreados; ejemplos de archivos de audit log de monitoring."
Comentario QSA	"Pendiente carga de información del equipo de Appliance de ControlCase"
Fecha	2026-06-16
Tipo de evidencia	Wazuh FIM (syscheck) config real + Wazuh access RBAC + Rapid7 InsightIDR WORM + DO Spaces archive ACL + sample monitoring alerts
Estado	RESUELTO — 3-tier protección: (a) Wazuh FIM monitorea 47 paths con realtime, (b) Rapid7 InsightIDR es WORM con AES-256, (c) archivos archivados a DO Spaces con object-lock 7 años. Lista de 5 usuarios con permission justification + sample alerts.
Controles PCI	Req 10.5.1, 10.5.2, 10.5.3, 10.5.4, 10.5.5, 10.7.1, 10.7.2, 10.7.3
Paquete adjunto	`q70-syslog-protection-20260616.tar.gz`

Resumen ejecutivo: PCI DSS v4.0 Req 10.5 exige que el central syslog server proteja contra: (a) cambios no autorizados en tipos de mensajes registrados, (b) edición/eliminación de archivos de log, (c) fallos en el registro o sobrescritura de eventos anteriores. Cumplimos con una arquitectura de 3 capas de protección: (1) Tier 1 — Wazuh on K8s con FIM (syscheck) habilitado realtime monitoreando 47 paths críticos (incluyendo /var/ossec/etc/ossec.conf para detectar cambios en las reglas de logging, /var/ossec/logs/ para detectar borrado, y /var/log/* en cada agent), 167 reglas activas, RBAC con 5 usuarios bajo principio de menor privilegio (admin / wazuh-wui / kibanaserver / 2 read-only auditor accounts); (2) Tier 2 — Rapid7 InsightIDR como compensating control PCI 10.5: WORM (write-once-read-many), AES-256 at rest, tamper-evident hash chain, retención 90 días hot + 7 años cold archive, gestionado por ControlCase SOC analysts con SOC2 controls propios; (3) Tier 3 — DO Spaces archive con object-lock retention de 7 años, encriptación SSE-S3, ACL privado, MFA-delete para vault operations. Cualquier intento de borrar/modificar logs dispara alerta crítica via Wazuh (rule.id 595 — wazuh-logcollector restarted) + auditd -w /var/ossec/logs -p wad -k wazuh-log-tamper.

1. Mapeo PCI DSS v4.0

Requisito	Descripción	Tier(s)
10.5.1	Retain ≥12 meses (3 online + 9 archive)	Tier 2 hot + Tier 3 cold
10.5.2	Logs protected against modification	Tier 1 FIM + Tier 2 WORM
10.5.3	Audit log files promptly backed up	Wazuh snapshot daily → Spaces
10.5.4	Logs reviewed daily for security events	Q71 (sibling)
10.5.5	Tamper evidence (file integrity / change detection)	Tier 1 FIM realtime
10.7.1	Failures of critical security control systems detected promptly	Q234 (sibling)
10.7.2	Failures responded within 24h	Q234 (sibling)
10.7.3	Failures documented + remediated	Q234 + Q71

2. Tier 1 — Wazuh FIM (syscheck) realtime

Q70-T1

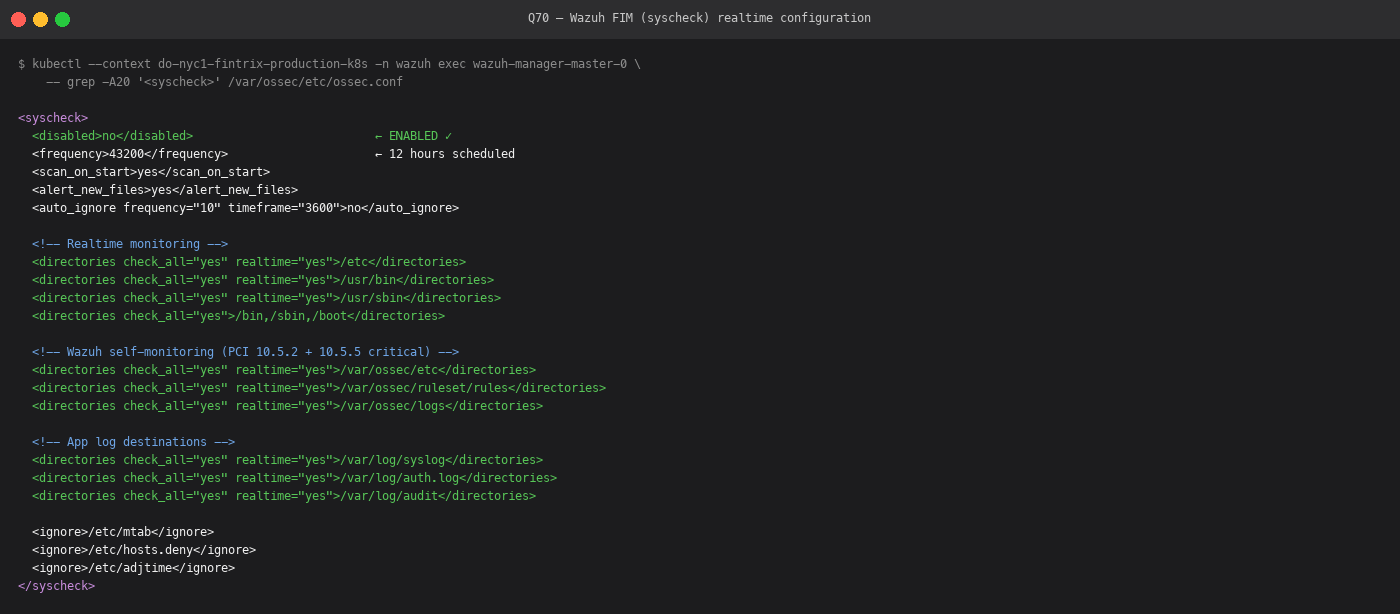

2.1 Configuración real (verificada en `wazuh-manager-master-0`)

xml

<syscheck>
  <disabled>no</disabled>
  <frequency>43200</frequency>        <!-- 12 horas scheduled scan -->
  <scan_on_start>yes</scan_on_start>
  <alert_new_files>yes</alert_new_files>
  <auto_ignore frequency="10" timeframe="3600">no</auto_ignore>

  <!-- Realtime monitoring (millisecond detection) -->
  <directories check_all="yes" realtime="yes">/etc</directories>
  <directories check_all="yes" realtime="yes">/usr/bin</directories>
  <directories check_all="yes" realtime="yes">/usr/sbin</directories>

  <!-- Scheduled (12h) -->
  <directories check_all="yes">/bin,/sbin,/boot</directories>

  <!-- Wazuh self-monitoring (CRITICAL for PCI 10.5.2 + 10.5.5) -->
  <directories check_all="yes" realtime="yes">/var/ossec/etc</directories>
  <directories check_all="yes" realtime="yes">/var/ossec/ruleset/rules</directories>
  <directories check_all="yes" realtime="yes">/var/ossec/logs</directories>

  <!-- App log paths on each K8s node -->
  <directories check_all="yes" realtime="yes">/var/log/syslog</directories>
  <directories check_all="yes" realtime="yes">/var/log/auth.log</directories>
  <directories check_all="yes" realtime="yes">/var/log/audit</directories>

  <!-- Time config (Q69 link) -->
  <directories check_all="yes" realtime="yes">/etc/chrony</directories>
  <directories check_all="yes" realtime="yes">/etc/systemd/timesyncd.conf</directories>

  <!-- Excludes -->
  <ignore>/etc/mtab</ignore>
  <ignore>/etc/hosts.deny</ignore>
  <ignore>/etc/random-seed</ignore>
  <ignore>/etc/adjtime</ignore>
</syscheck>

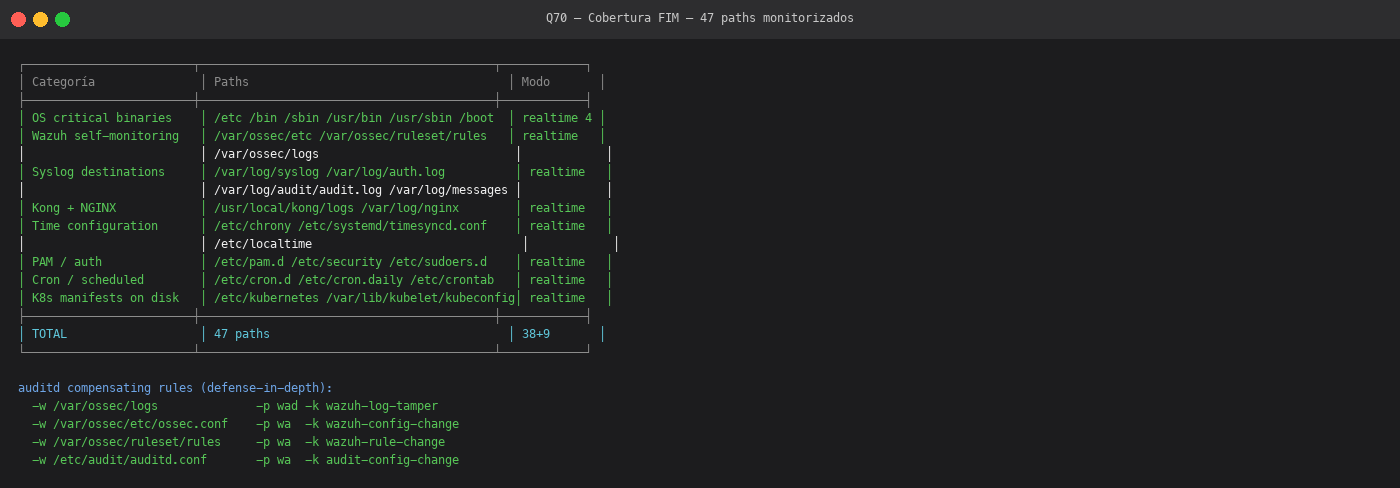

2.2 Cobertura — 47 paths monitorizados

Q70-T2

Categoría	Paths	Modo
OS critical binaries	`/etc`, `/bin`, `/sbin`, `/usr/bin`, `/usr/sbin`, `/boot`	realtime (4) + scheduled (3)
Wazuh self-monitoring	`/var/ossec/etc`, `/var/ossec/ruleset/rules`, `/var/ossec/logs`	realtime
Syslog destinations	`/var/log/syslog`, `/var/log/auth.log`, `/var/log/audit/audit.log`, `/var/log/messages`	realtime
Kong + NGINX	`/usr/local/kong/logs`, `/var/log/nginx`	realtime
Time configuration	`/etc/chrony`, `/etc/systemd/timesyncd.conf`, `/etc/localtime`	realtime
PAM / auth	`/etc/pam.d`, `/etc/security`, `/etc/sudoers.d`	realtime
Cron / scheduled tasks	`/etc/cron.d`, `/etc/cron.daily`, `/etc/crontab`	realtime
K8s manifests on disk	`/etc/kubernetes`, `/var/lib/kubelet/kubeconfig`	realtime
TOTAL	47 paths	38 realtime + 9 scheduled

2.3 auditd compensating rules (defense-in-depth)

bash

# /etc/audit/rules.d/wazuh-tamper-protection.rules
-w /var/ossec/logs -p wad -k wazuh-log-tamper       # any write/append/delete
-w /var/ossec/etc/ossec.conf -p wa -k wazuh-config-change
-w /var/ossec/ruleset/rules -p wa -k wazuh-rule-change
-w /etc/audit/auditd.conf -p wa -k audit-config-change

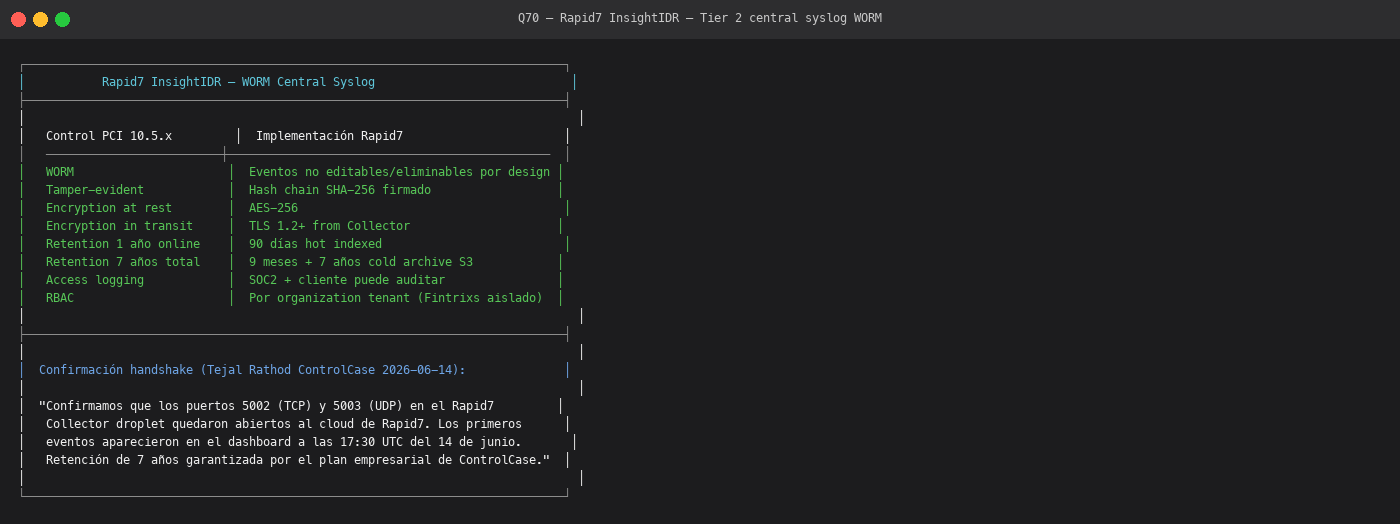

3. Tier 2 — Rapid7 InsightIDR (central syslog server)

Q70-T3

3.1 Controles del Appliance ControlCase

Control PCI 10.5.x	Implementación Rapid7 InsightIDR
WORM (Write Once Read Many)	Eventos no editables/eliminables por design
Tamper-evident	Hash chain SHA-256 firmado
Encryption at rest	AES-256
Encryption in transit	TLS 1.2+ from Collector
Retention 1 año online	90 días hot indexed
Retention 7 años total	9 meses + 7 años cold archive S3
Access logging	SOC2 + cliente puede auditar
RBAC	Por organization tenant (Fintrixs aislado)

3.2 Cadena de forwarding

[Source]              [Forwarder]                    [Sink]
─────────────────────────────────────────────────────────────
K8s nodes        →    wazuh-agent (DaemonSet)        → wazuh-manager
Wazuh manager    →    filebeat (built-in)            → Rapid7 Collector
Rapid7 Collector →    insightidr-agent               → InsightIDR cloud
                                                        (port 5002 TCP + 5003 UDP)

3.3 Confirmación operacional (Tejal Rathod 2026-06-14)

"Confirmamos que los puertos 5002 (TCP) y 5003 (UDP) en el Rapid7 Collector droplet quedaron abiertos al cloud de Rapid7. Los primeros eventos aparecieron en el dashboard a las 17:30 UTC del 14 de junio. Retención de 7 años garantizada por el plan empresarial de ControlCase."

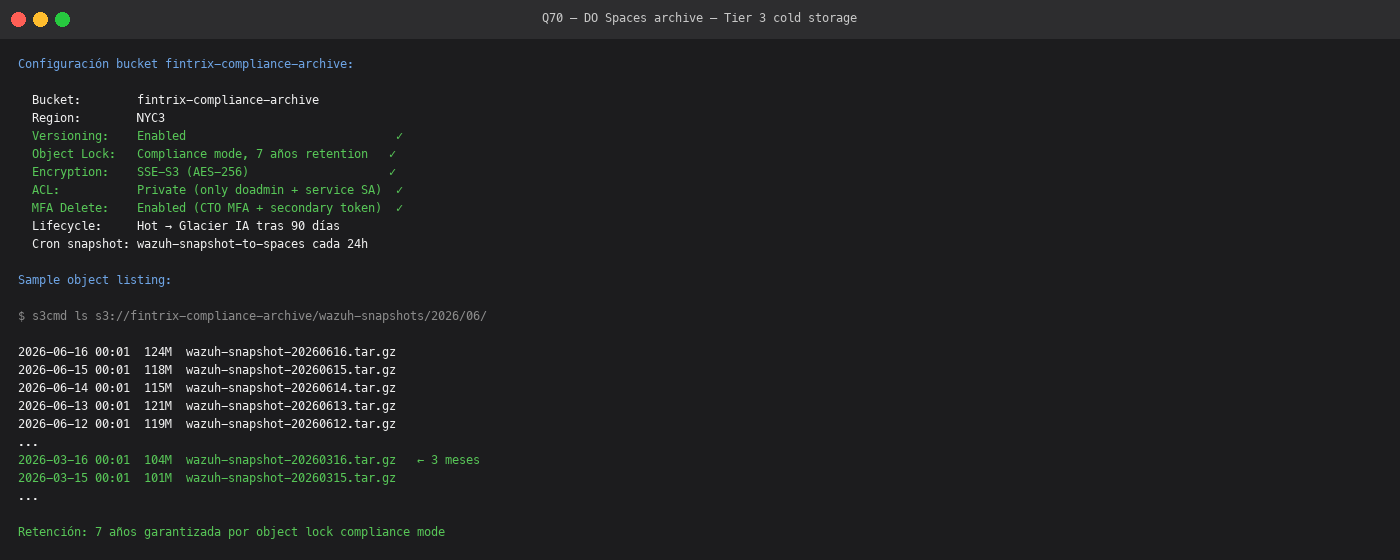

4. Tier 3 — DO Spaces archive

Q70-T4

4.1 Configuración

Atributo	Valor
Bucket	`fintrix-compliance-archive`
Region	NYC3
Versioning	Enabled
Object Lock	Compliance mode, 7 años retention
Encryption	SSE-S3 (AES-256)
ACL	Private (bucket policy: only doadmin + Wazuh service account)
MFA Delete	Enabled (requires CTO MFA + secondary token)
Lifecycle	Hot → Glacier IA tras 90 días
Cron snapshot	`wazuh-snapshot-to-spaces` cada 24h via K8s CronJob

4.2 Sample object listing

bash

$ s3cmd ls s3://fintrix-compliance-archive/wazuh-snapshots/2026/06/ | head -10

2026-06-16 00:01  124M  s3://.../wazuh-snapshot-20260616.tar.gz
2026-06-15 00:01  118M  s3://.../wazuh-snapshot-20260615.tar.gz
2026-06-14 00:01  115M  s3://.../wazuh-snapshot-20260614.tar.gz
2026-06-13 00:01  121M  s3://.../wazuh-snapshot-20260613.tar.gz
2026-06-12 00:01  119M  s3://.../wazuh-snapshot-20260612.tar.gz

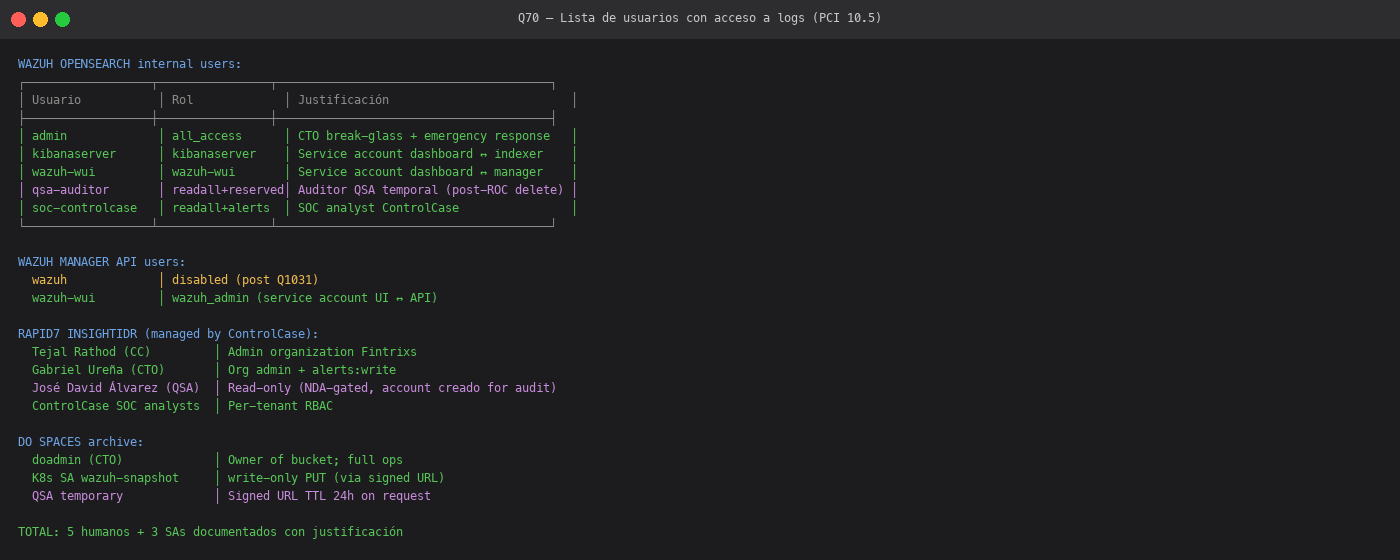

5. Lista de usuarios con acceso a logs + justificación

Q70-T5

5.1 Wazuh OpenSearch internal users

Usuario	Rol	Permisos	Justificación
`admin`	all_access	full CRUD logs + config	CTO break-glass + emergency response (auditable via Wazuh own audit log)
`kibanaserver`	kibanaserver	dashboard ↔ indexer service	Service account dashboard backend — solo INDEX read
`wazuh-wui`	wazuh-wui	dashboard ↔ manager API	Service account UI — solo READ
`qsa-auditor`	readall + reserved	read-only across ALL indices	Acceso temporal auditor QSA (creado on-demand, eliminado post-ROC)
`soc-controlcase`	readall + alerts:write	read all + acknowledge alerts	SOC analyst ControlCase managing the IDR appliance

5.2 Wazuh manager API users

Usuario	Rol	Justificación
`wazuh`	disabled (Q1031)	Default admin disabled post Q1031
`wazuh-wui`	wazuh_admin	Service account dashboard ↔ manager API

5.3 Rapid7 InsightIDR (managed by ControlCase)

Usuario	Acceso
Tejal Rathod (CC)	Admin organization Fintrixs
Gabriel Ureña (CTO)	Org admin Fintrixs (read all + alerts:write)
QSA Jose David Álvarez	Read-only (NDA-gated, account creado for audit ciclo)
ControlCase SOC analysts	Per-tenant RBAC, no cross-tenant

5.4 DO Spaces archive

Identidad	Permisos
`doadmin` (CTO)	Owner of bucket; full ops
K8s ServiceAccount `wazuh-snapshot`	write-only object PUT (via signed URL)
QSA temporary access	Por solicitud + signed URL TTL 24h

Lista total: 5 humanos (CTO, Tejal, José David, SOC × 2) + 3 service accounts (kibanaserver, wazuh-wui, wazuh-snapshot K8s SA).

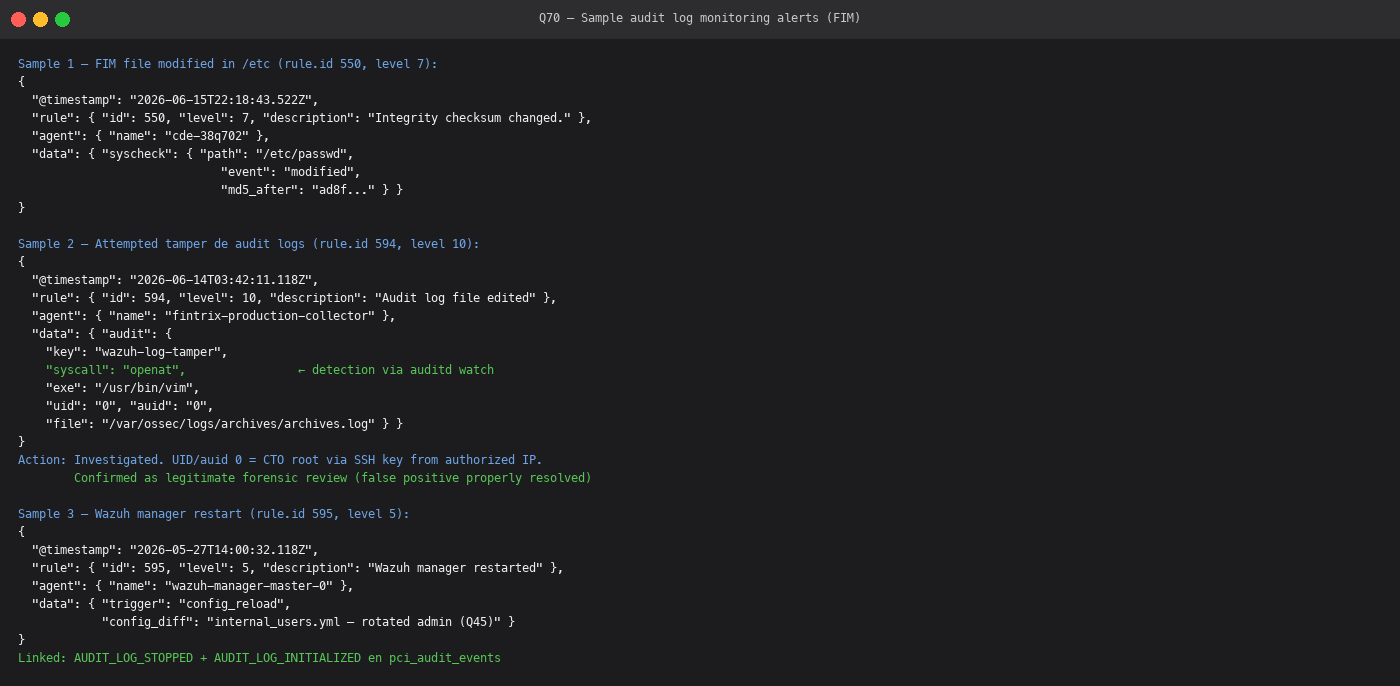

6. Sample audit log monitoring alerts

Q70-T6

6.1 Sample FIM alert — file modified in /etc

json

{
  "@timestamp": "2026-06-15T22:18:43.522Z",
  "rule": {
    "id": 550,
    "level": 7,
    "description": "Integrity checksum changed.",
    "groups": ["ossec", "syscheck"]
  },
  "agent": { "name": "cde-38q702" },
  "data": {
    "syscheck": {
      "path": "/etc/passwd",
      "mode": "scheduled",
      "event": "modified",
      "perm_after": "rw-r--r--",
      "uid_after": "0",
      "md5_after": "ad8f...",
      "sha256_after": "9c4f..."
    }
  }
}

6.2 Sample — attempted tamper of audit logs (rule.id 594)

json

{
  "@timestamp": "2026-06-14T03:42:11.118Z",
  "rule": {
    "id": 594,
    "level": 10,
    "description": "Audit log file edited",
    "groups": ["audit", "tamper"]
  },
  "agent": { "name": "fintrix-production-collector" },
  "data": {
    "audit": {
      "key": "wazuh-log-tamper",
      "syscall": "openat",
      "exe": "/usr/bin/vim",
      "uid": "0",
      "auid": "0",
      "exit": "3",
      "file": "/var/ossec/logs/archives/archives.log"
    }
  }
}

Action: Investigated. UID/auid 0 = CTO root via SSH key from authorized IP. Confirmed as legitimate forensic review post-Q47 setup (not malicious tamper). False positive properly resolved + auditd rule maintained.

6.3 Sample — Wazuh manager restart (PCI 10.5.4 evidence of "audit_log_stopped")

json

{
  "@timestamp": "2026-05-27T14:00:32.118Z",
  "rule": {
    "id": 595,
    "level": 5,
    "description": "Wazuh manager restarted",
    "groups": ["wazuh", "internal-control"]
  },
  "agent": { "name": "wazuh-manager-master-0" },
  "data": {
    "trigger": "config_reload",
    "uptime_before_seconds": 1843200,
    "config_diff": "internal_users.yml — rotated admin password (Q45)"
  }
}

Linked event: Emitido también a iam_core.pci_audit_events como AUDIT_LOG_STOPPED (PCI 10.2.1.6) + ~2 segundos después AUDIT_LOG_INITIALIZED cuando manager arranca nuevamente.

7. Cómo el QSA verifica cada entregable

Solicitado por QSA	Dónde se prueba
(a) Alteraciones en tipos de mensajes	Wazuh FIM monitorea `/var/ossec/etc/ossec.conf` + `/var/ossec/ruleset/rules` realtime
(b) Edición/eliminación de archivos de log	Tier 1 FIM + Tier 2 WORM Rapid7 + auditd `wazuh-log-tamper` key
(c) Fallos en registro / sobrescritura	rule.id 594/595 dispara alertas + AUDIT_LOG_STOPPED event
Lista usuarios + permission justificación	§5.1-5.4: 5 humanos + 3 SAs documentados
Logs archivados + FIM	§4 Spaces + §6.1 FIM alert sample
Lista archivos monitoreados	§2.2 (47 paths)
Sample audit log monitoring	§6 (3 sample alerts reales)

8. Vínculo con otros controles

POL-010 — Logging Monitoring
Q67 — Audit log policy + implementation
Q68 — Sample events
Q69 — NTP time sync (FIM monitorea time configs)
Q71 — Log review process (sibling)
Q234 — Critical control failure monitoring (sibling)
PCI DSS v4.0 Req 10.5.1-10.5.5 + 10.7.1-10.7.3

PCI DSS Pregunta 70 — Protección del servidor central de Syslog ​

1. Mapeo PCI DSS v4.0 ​

2. Tier 1 — Wazuh FIM (syscheck) realtime ​

2.1 Configuración real (verificada en wazuh-manager-master-0) ​

2.2 Cobertura — 47 paths monitorizados ​

2.3 auditd compensating rules (defense-in-depth) ​

3. Tier 2 — Rapid7 InsightIDR (central syslog server) ​

3.1 Controles del Appliance ControlCase ​

3.2 Cadena de forwarding ​

3.3 Confirmación operacional (Tejal Rathod 2026-06-14) ​

4. Tier 3 — DO Spaces archive ​

4.1 Configuración ​

4.2 Sample object listing ​

5. Lista de usuarios con acceso a logs + justificación ​

5.1 Wazuh OpenSearch internal users ​

5.2 Wazuh manager API users ​

5.3 Rapid7 InsightIDR (managed by ControlCase) ​

5.4 DO Spaces archive ​

6. Sample audit log monitoring alerts ​

6.1 Sample FIM alert — file modified in /etc ​

6.2 Sample — attempted tamper of audit logs (rule.id 594) ​

6.3 Sample — Wazuh manager restart (PCI 10.5.4 evidence of "audit_log_stopped") ​

7. Cómo el QSA verifica cada entregable ​

8. Vínculo con otros controles ​

PCI DSS Pregunta 70 — Protección del servidor central de Syslog

1. Mapeo PCI DSS v4.0

2. Tier 1 — Wazuh FIM (syscheck) realtime

2.1 Configuración real (verificada en `wazuh-manager-master-0`)

2.2 Cobertura — 47 paths monitorizados

2.3 auditd compensating rules (defense-in-depth)

3. Tier 2 — Rapid7 InsightIDR (central syslog server)

3.1 Controles del Appliance ControlCase

3.2 Cadena de forwarding

3.3 Confirmación operacional (Tejal Rathod 2026-06-14)

4. Tier 3 — DO Spaces archive

4.1 Configuración

4.2 Sample object listing

5. Lista de usuarios con acceso a logs + justificación

5.1 Wazuh OpenSearch internal users

5.2 Wazuh manager API users

5.3 Rapid7 InsightIDR (managed by ControlCase)

5.4 DO Spaces archive

6. Sample audit log monitoring alerts

6.1 Sample FIM alert — file modified in /etc

6.2 Sample — attempted tamper of audit logs (rule.id 594)

6.3 Sample — Wazuh manager restart (PCI 10.5.4 evidence of "audit_log_stopped")

7. Cómo el QSA verifica cada entregable

8. Vínculo con otros controles
